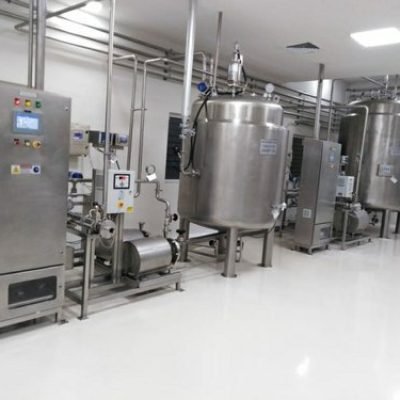

PURIFIED WATER STORAGE & DISTRIBUTION SYSTEM
AQUA SOLUTIONS Are Leading Manufacturer In Water Treatment And Waste Water Treatment Industry From Last 17 Years. Aqua Solutions Provide You the latest concepts for Purified water storage & distribution system. Purified water generated from purified water generation system shall be transferred to the Purified water storage tank This Purified water is then re-circulated in a closed loop to various user points with the Following Features.
The storage tank assembly consisting of
- SS316L wetted parts, SS Cladded Jacketed,
- Spray ball located at the center nozzle (loop return) on the manhole
- Sanitary nozzles for feed, re-circulation, vent, pressure gauge, level switch, spare nozzles on the top (manhole) and outlet at the bottom.
- Surface finish of less than 0.4 Ra inside and mat finish on outside surface.
- Jacketed vent filter With Housing on the tank top
Features of The distribution pump
- SS316 L wetted parts.
- Mono-block / vertical multistage / centrifugal type.
Features Of The Distribution loop
- SS316L, Seamless Pipes, Electro-polished.
- Internal surfaces finish less than 0.4 Ra.
- Outside Mat / Mirror polish
- Installed at a slope of 1:100 for complete drain ability.
- Properly supported with SS304 contact parts.
- Normal velocity of 2.8 m/s and during peak load velocity of min 1.2 m/s shall be maintained.
- All possible joints shall be orbital welded; remaining joints shall be sanitary tri-clamp type with silicon gaskets.
Features Of the Systems
- The complete storage and distribution system shall have provision of hot water sanitization
- Pressure gauges at pump outlet, loop return and compound pressure gauge on tank top
- Conductivity controllers in loop supply.
- Differential pressure sensors & transmitters are provided in loop system.
- Temperature sensors in tank bottom & loop return.
- Level controller on tank for pump controlling and feed control.
- Sanitary UV Unit to control microbial load.
- Flow transmitters in loop return to monitor flow rate / velocity.
- Auto Dumping valve in loop supply for high conductivity.
- Auto Back Pressure Valve in loop return to regulate pressure and flow.
- The complete system shall be controlled by PLC based control panel.
